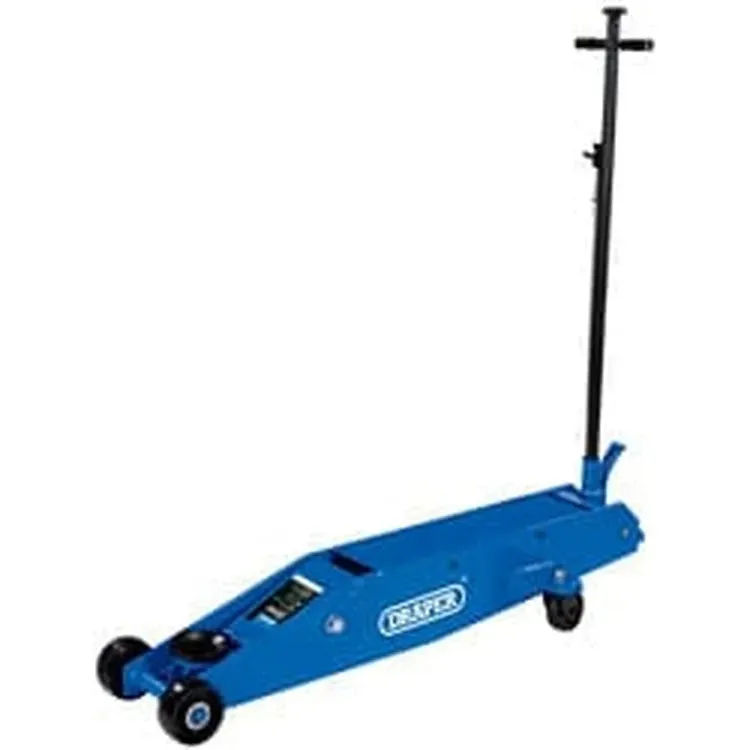

Draper Long Chassis Trolley Jack, 10 Tonne DR-03494

Heavy-duty chassis fitted with a 'quick-lift' foot pedal to rapidly raise the saddle to the vehicle jacking point. Large saddle aids positioning. Locking facility allows the handle to be locked in three positions. T-shaped handle with an incorporated release valve prevents accidental lowering. Rear swivelling castors with toe plate increases manoeuvrability. Safety valve prevents the jack from overloading. Supplied with a one piece handle.




Capacity   10 Tonne (10,000kg)
Minimum Height   170mm
Maximum Height   570mm
Saddle Diameter   130mm
Handle Length   1,220mm
Chassis Length   1,535mm
Nett Weight   125kg

Manufactured to EN1494 Specification




5010559034949
PartNo-TJ10LR
Draper 03494
