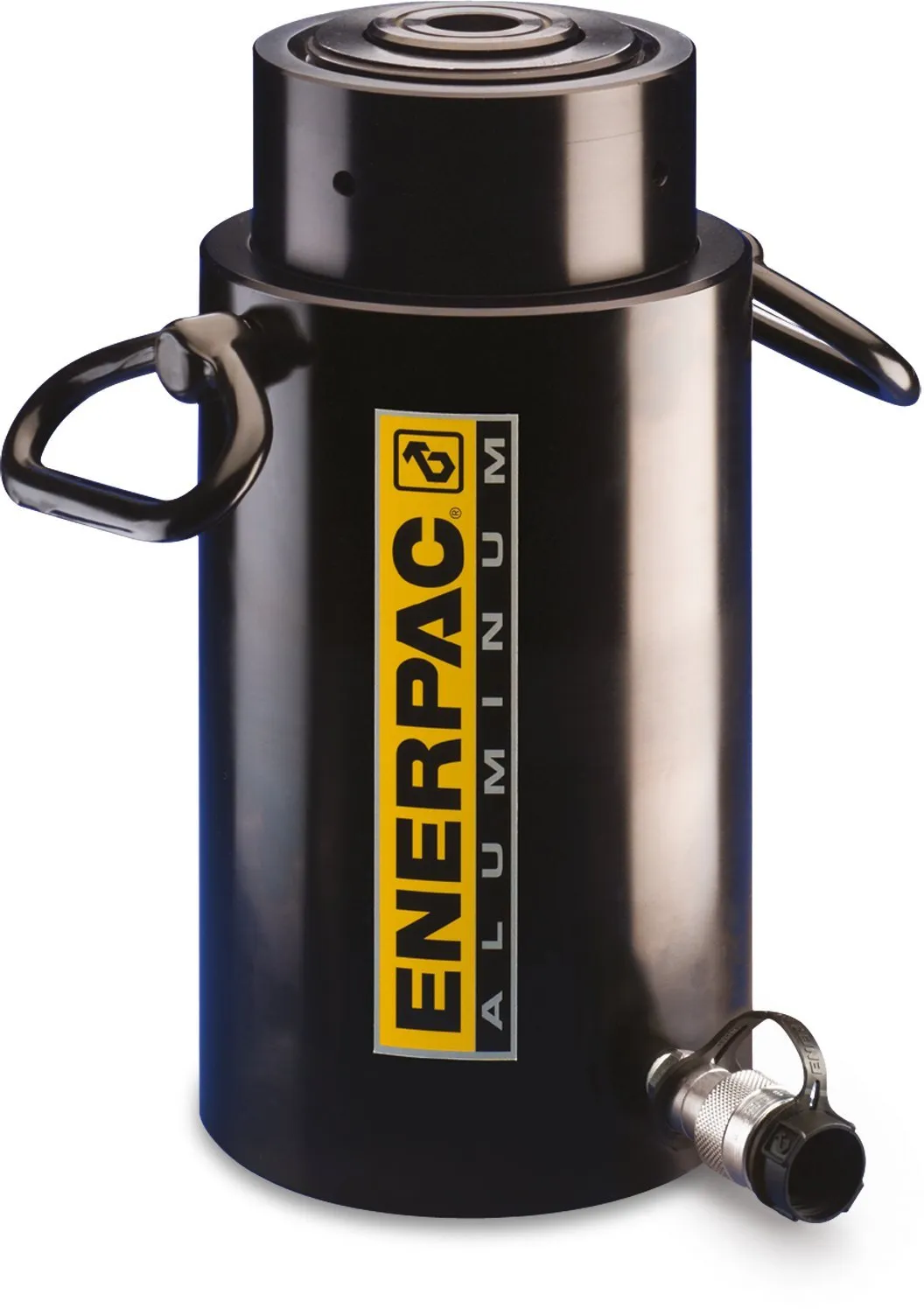

This Enerpac RAC-1008 single-acting aluminum hydraulic cylinder with 100-ton capacity has a round body with one port and spring-return of the single piston rod with 7.87" stroke. The single-acting hydraulic cylinder uses liquid pumped through its single port for rod extension and a high-strength internal spring for rod retraction to produce continued movement. A built-in stop ring prevents the plunger from extending beyond the stroke length and can endure the full capacity of the cylinder. The port is a quick-connect CR-400 female coupler for use with a CH-604 male coupler (sold separately). The included dust cap covers the port when not in use. The cylinder body is round with integrated handle and is made of lightweight aluminum with a hard-coat finish for durability and extended life. The cylinder attaches to the included steel baseplate and saddle to help prevent load-induced damage. This item meets Association of Mechanical Engineers (ASME) B-30.1 specifications for safety standards for cranes and hoists and International Organization for Standardization (ISO) 10100 testing specifications for hydraulic cylinders.

Enerpac manufactures high-pressure tools and equipment for industrial applications. The company, founded in 1910, is headquartered in Menomonee Falls, WI.

What's in the Box?

• Enerpac RAC-1008 cylinder
• Baseplate
• Saddle
• (4) baseplate bolts

• Is Discontinued By Manufacturer ‏ : ‎ No
• Package Dimensions ‏ : ‎ 18.4 x 16.3 x 10.5 inches; 59.5 Pounds
• Date First Available ‏ : ‎ October 9, 2008
• Manufacturer ‏ : ‎ Enerpac
